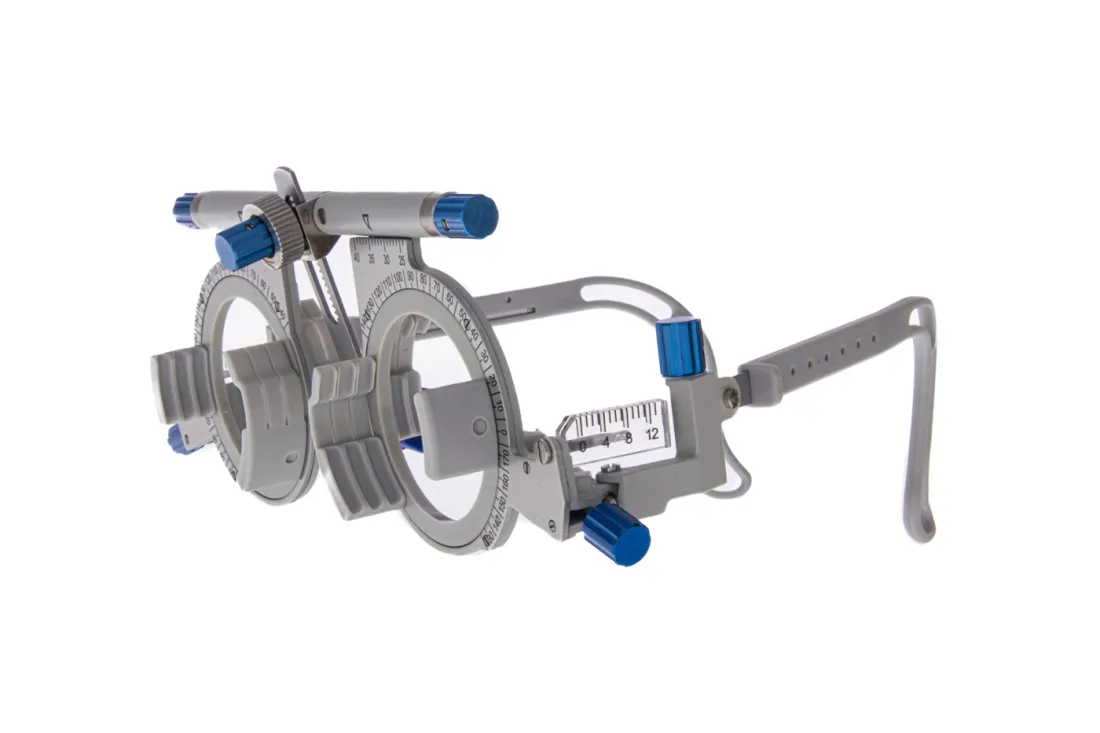

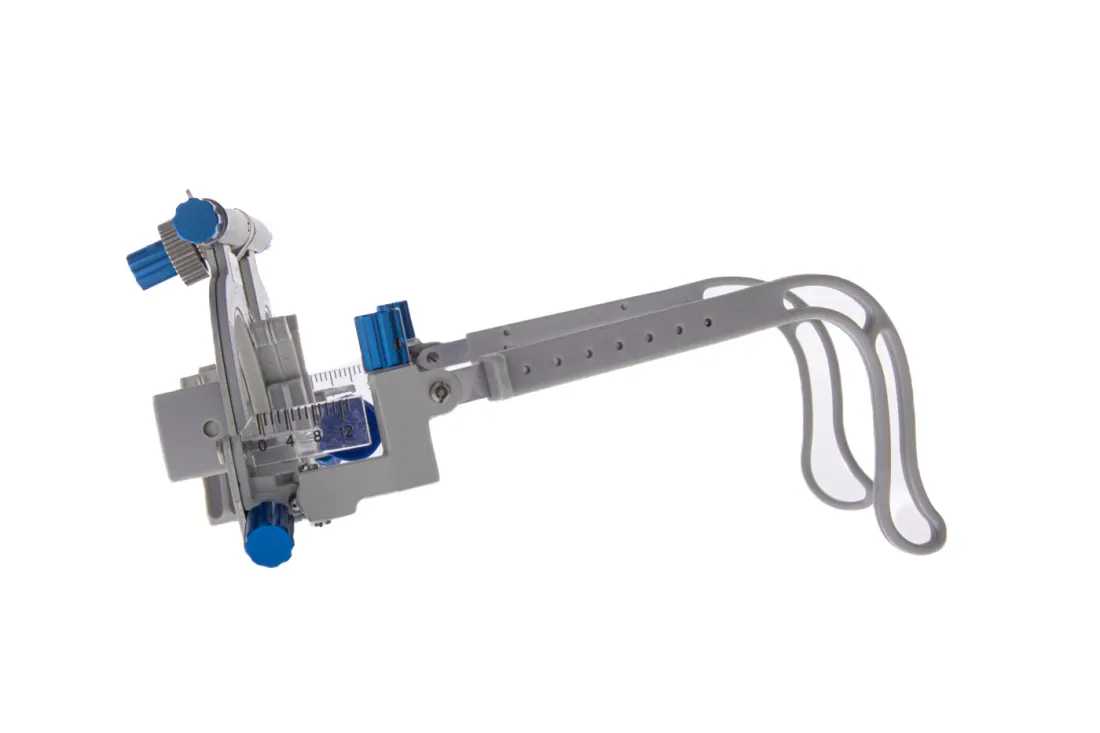

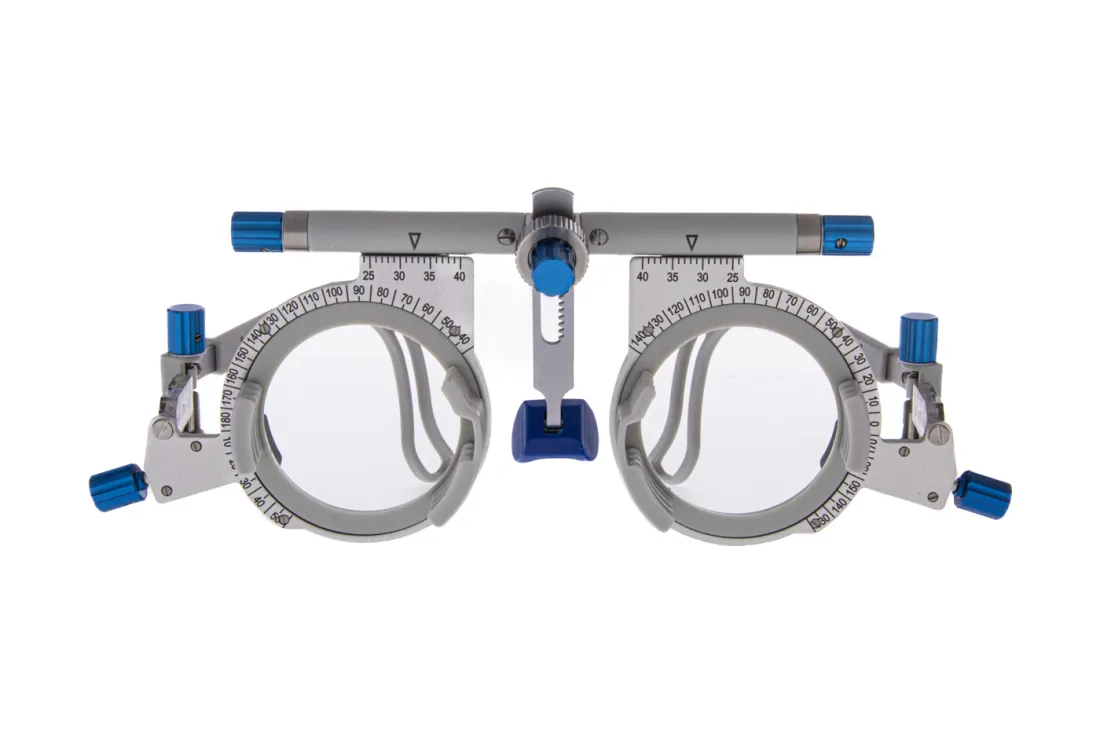

Trial Frame

The lightweight construction made of plastic and metal ensures durability and reliability. It is easy to use, long-lasting, and requires fewer adjustments to achieve the right and comfortable fit.



Specifications:

Pupillary distance adjustment range:

  • Binocular pupillary distance: 50–60 mm

  • Monocular pupillary distance: 25–40 mm

  • Minimum scale: 1 mm

Pupillary distance tolerance: +-0.5 mm

Axis scale:

  • Left scale: 130–0–140

  • Right scale: 40–180–50

Inner diameter of lens holder: 33.5 mm

Maximum number of lenses that can be inserted simultaneously in the left or right holder: 5 pcs

Lens rotation angle: 360°

Adjustable nose pad range:

  • Height: 0–23 mm

  • Angle: 0–360°

Weight: 55 g

H-2
